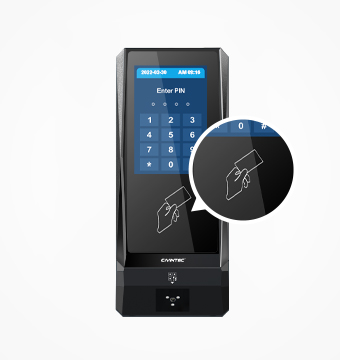

3.5" touch screen access control terminal with reader
Quick look
CT9 PRO is an All-in-ONE intelligent terminal with an integrated reader, eliminating the need for additional controller units. It supports multiple identification technology options which is convenient to manage different types of visitors as regular staff, resident, temporary visitors, installer and contractors etc. CT9 PRO provides a smart and real-time monitoring solution to enable the third party server to verify visitor credential and control lock or facilities in real time under host online mode. The colorful touch screen is fully controlled by server to display any customized information to guide visitor for different purpose. CT9 PRO with SDK can be integrated into general application solutions as access control, time attendance, membership, cashless payment and facility control, It is widely used in used in condominium, parking lot, campus, factory, construction building management, leisure club and gym, public transportation, petrol station and many projects globally.

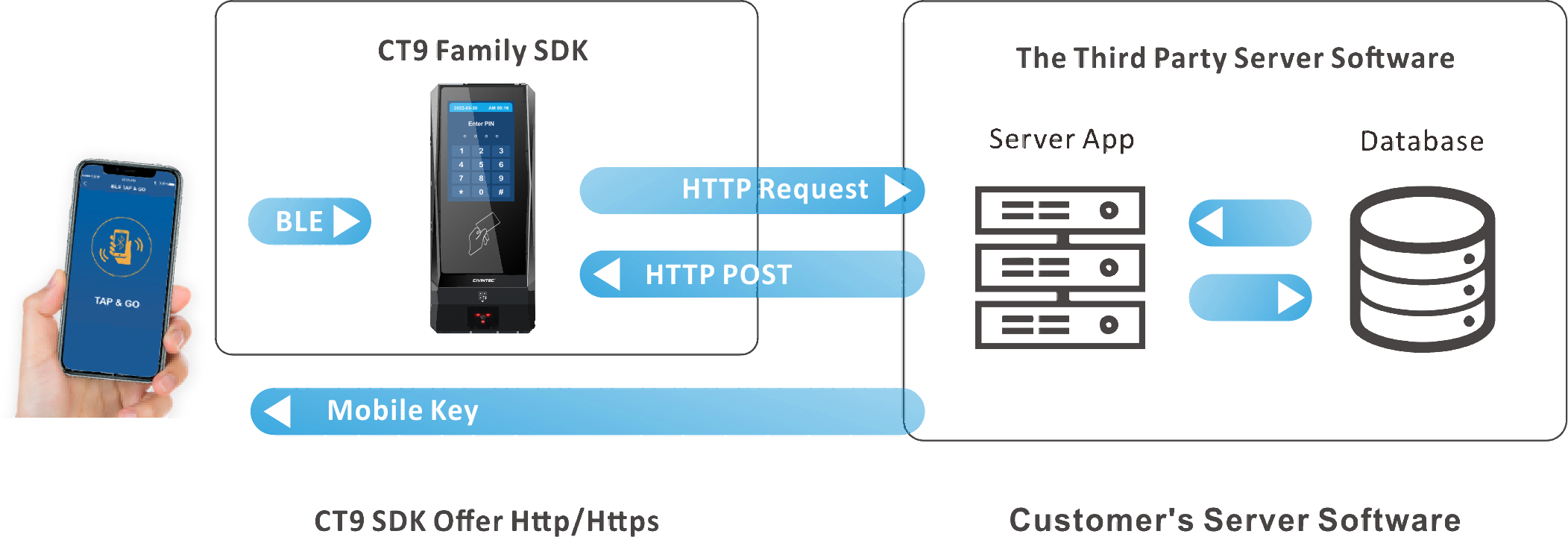

For developer- SDK
Robust SDK with demo software are offered for the third party server software integration and development. It’s able to get HTTP requests directly from CT9 PRO device and reply using HTTP/HTTPs without any middleware in form of SDK library. After setting, CT9 PRO automatically establish a connection and communication with customer’s server. Under offline mode, CT9 PRO automatically keep detecting the network connection status and try to establish a connection with customer server.

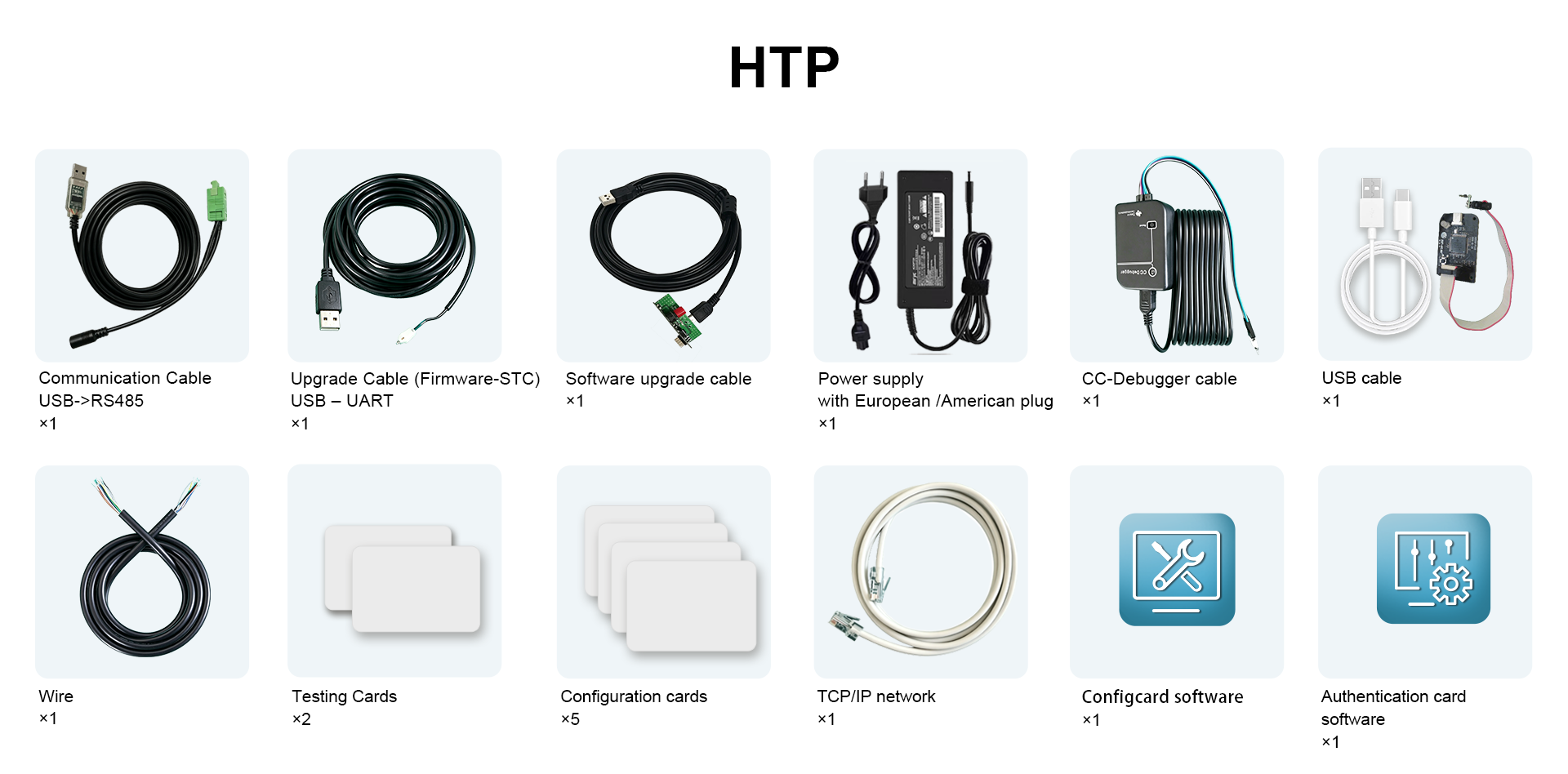

- Hardware testing package (HTP)
HTP is plug and play hardware testing, debug and upgrading package with all necessary accessories, software tool, configuration card to establish full testing environment for customer’s easy test, device configuration, fast development and software upgrade.
Advantages
3.5” Touch Screen Linux OS with SDK
Programmable UI, background image with text content
Branding LOGO modification
Support Wi-Fi and 4G LTE connectivity
TCP/IP RJ45 port and Power Over Ethernet(PoE) for less wiring and cost-save installation

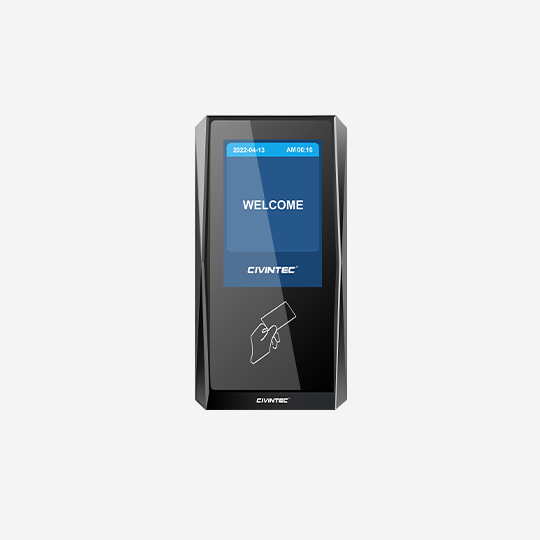

Support BLE in iOS, NFC/BLE in Android, Configurable BLE Broadcast Range

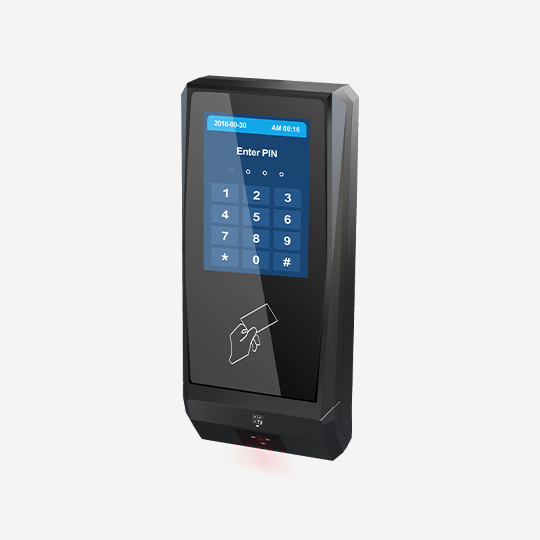

QR Code scanner with high-speed readability and large data capacity
With dynamic QR Code generator to improve security for application requirements
RFID credentials are protected by DESFire® EV1/EV2/EV3 with AES encryption and MIFARE ® SAM AV2/AV3 (EAL5+/EAL6+)
BLE credential is protected by AES encryption.
BLE and QR code credential extended to accommodate more data to strengthen credential encryption
HTTPs protocol with enhanced CA certificate verification
High-security access control system working with CN5 reader to achieve indoor-mounted relay controlling door lock for high security
Support both local offline and online mode under server remote control in real time
HTTP/HTTPs encrypted communication protocol
Function Keys record different activity as clock in/out, overtime, breaks and other events
Programmable definitions to trigger specific events

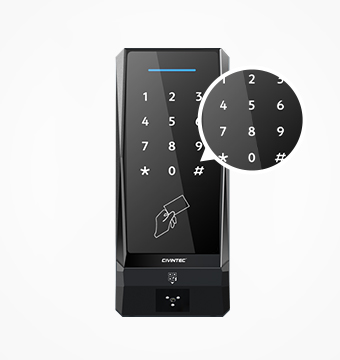

Customizable to expand and add more keys
Server Remote Update via TCP/IP, WiFi, 4G
BLE OTA update - wireless firmware updates
Use ConfigCard software update Linux software and firmware
1~2 Relay Output design and input for Fire Alarm system integration
Cloud-managed access control toggle to set door stays unlocked (free access), door stays locked (no access),normal access control (validates permissions)

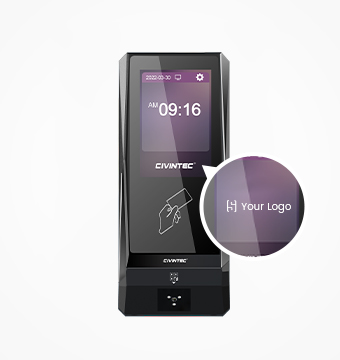

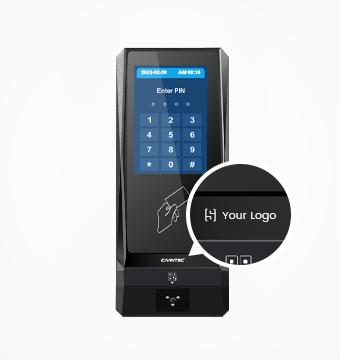

To make product stand out from the crowd, we offer the opportunity to profile your readers for increased recognition.
OEM service to enable logo printing in single or full color or program LOGO to display on touch screen. We also offer development customization service from hardware new features to software development.
As manufacturer and designer, we provide technical customization service from hardware, firmware to software to well meet various requirements from the market. Please contact our sales team for further discussion.
Yes, CT9 PRO is with embedded relay to control door or turnstile.
Yes, CT9 PRO supports APB function, and it can distinguish Card ID is read from itself or slave reader.
Yes, CT9 PRO can fully support HID® iClass card. CT9 PRO is using HID® reader module to support HID® iClass cards.
Yes, CT9 PRO supports TCP/IP interface with PoE together.
Yes, CT9 PRO supports HTTP/HTTPs protocol.
Yes, there are two working modes online/offline for CT9 PRO.
(1) Online mode:
CT9 PRO read and send card ID or mobile credential to your server software to identify its validity. If it is valid, server software will return "Access Granted" command to the machine, CT9 PRO will control door lock to open and display image or text as "Access Granted" on touch screen.
(2) Offline mode:
CT9 PRO has memory to keep user IDs and events to identify the ID validity and control door lock to open or keep closed.
Yes, CT9 PRO can be integrated with the web server to achieve the function.
Yes, in HTTP/HTTPS protocol, for the convenience of customer’s usage and ensure the security, some configuration of CT9 PRO can be configured with server.
For CT9 PRO QR code function, there are two different methods for selection.
(1) QR code is dynamic shown on screen:

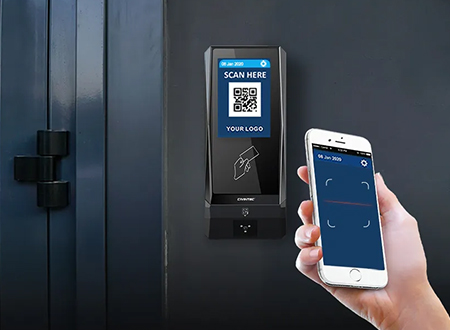

CT9 PRO is with embedded QR code generator to display dynamic QR code on touchscreen for mobile phone to scan it.
(2) CT9 PRO scan QR code:
CT9 PRO has integrated QR reader to scan the QR code displayed on mobile phone or printed on paper.
